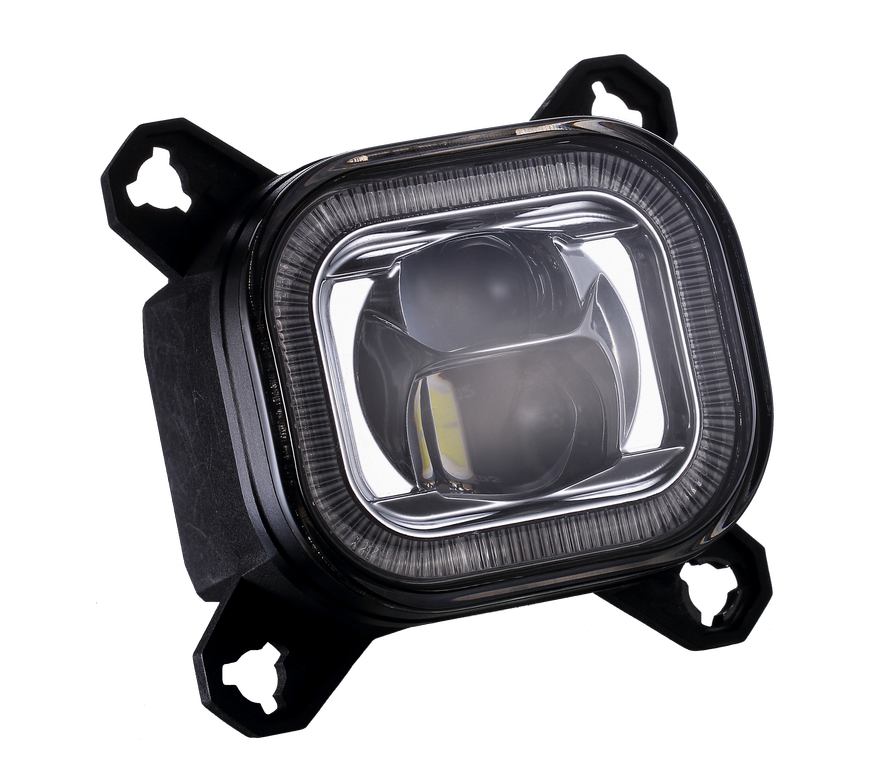

Rectangular Low Beam+ DRL+ PO "O" Type

New designed Rectangles LED Low Beam module. Integrated driver. Precise dark/light boundary. Chrome or black available. "O" shape or "U" shape of DRL/PO is optional. Right Hand driver is available.

Application

  • Car
    Car
  • Truck
    Truck
  • Bus
    Bus
  • Construction vehicle
    Construction vehicle
  • Train
    Train
  • Military Vehicle
    Military Vehicle
  • Motor
    Motor

Certification

  • DOT
    DOT
  • ECE
    ECE
  • SAE
    SAE
  • CCC
    CCC
  • EMC R10
    EMC R10
  • CISPR 25
    CISPR 25
  • ISO10605
    ISO10605
  • IP6K9K
    IP6K9K
  • 12/24V
    12/24V
  • -40°C~+80°C
    -40°C~+80°C
  • ROHS
    ROHS
  • SAE J2139
    SAE J2139
  • ISO7637
    ISO7637
  • 30000H
    30000H
  • SHOCK 40G
    SHOCK 40G
  • MIL-STD
    MIL-STD
  • REACH
    REACH
  • 3 YEARS
    3 YEARS
    • Product Code

      GL-087

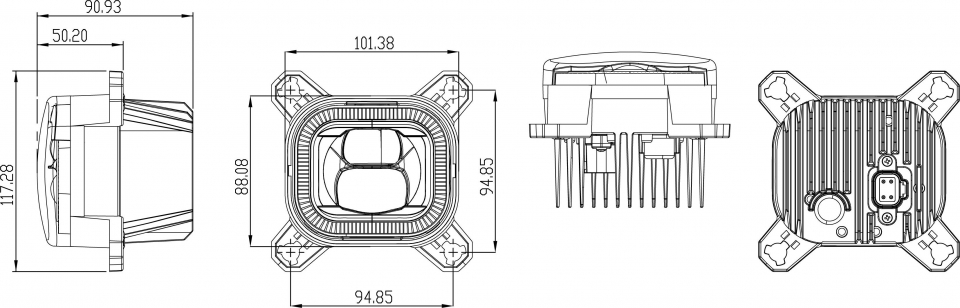

    • Dimensions

      101.4x88.1 mm

    • Voltage

      8-33V

    • Power (13.5V)

      Low beam: 20.9 W; DRL: 9.5 W; Position light: 0.43 W

    • Power (28V)

      Low beam: 21.56 W; DRL: 9.8 W; Position light: 0.78 W

    • Homologation

      ECE R7, R87,R112, EMC R10, SAE

    • Weight

       626g (+/-15g)

    • Ventilation

      Nitto Denko Air Cap

    • Material Front Lens

      PC

    • Material Housing

      ADC

    • Temperature

      -40°C to +80°C

    • LED Brand

      Osram

    • Connector

      DT04-4P

    • Harness and Length

      200mm


      Description Part No
    1 ECE/SAE 90mm Rectangular low_LHD_O_mat/gloss B GL-087
    2 ECE/SAE 90mm Rectangular low_LHD_O_chrome GL-087C
    3 ECE/SAE 90mm Rectangular Low.DRL.PO_LHD_O_mat/gloss B GL-087-DP
    4 ECE/SAE 90mm Rectangular Low.DRL.PO_LHD_O_chrome GL-087C-DP
    5 ECE 90mm Rectangular low_RHD_O_mat/gloss B GL-087E-R01
    6 ECE 90mm Rectangular low_RHD_O_chrome GL-087EC-R01
    7 ECE 90mm Rectangular Low.DRL.PO_RHD_O_mat/gloss B GL-087E-DP-R01
    8   ECE 90mm Rectangular Low.DRL.PO_RHD_O_chrome GL-087EC-DP-R01
  • GL-087

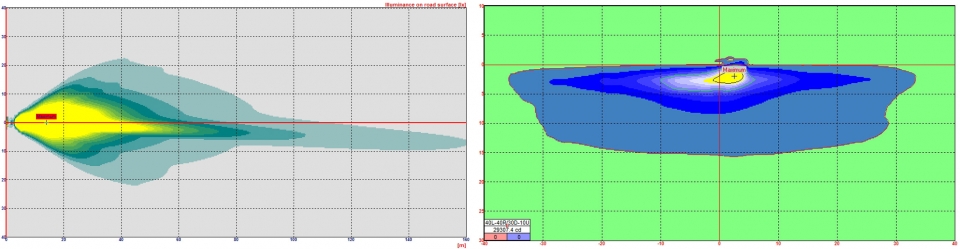

    • Photometry            Low Beam-LHD
    GL-087O-LDP sample for low beam-LHD

                                            DRL

    GL-087O-LDP sample for DRL-LHD

                                            Position light
    GL-087O-LDP sample for position lamp-LHD









  • Other Parts

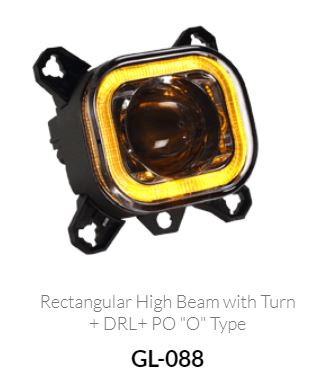

    GL-088
